R8 Robowash Parts Washer Machine
R8 Robowash Parts Washer Machine
| Load capacity: | 6000 Kg |
|---|---|
| Basket size: | 3800 mm |
| Internal height: | 1100mm |
| Tank capacity: | 2500 litres |
| Machine weight : | 9500 Kg |
Machine Description

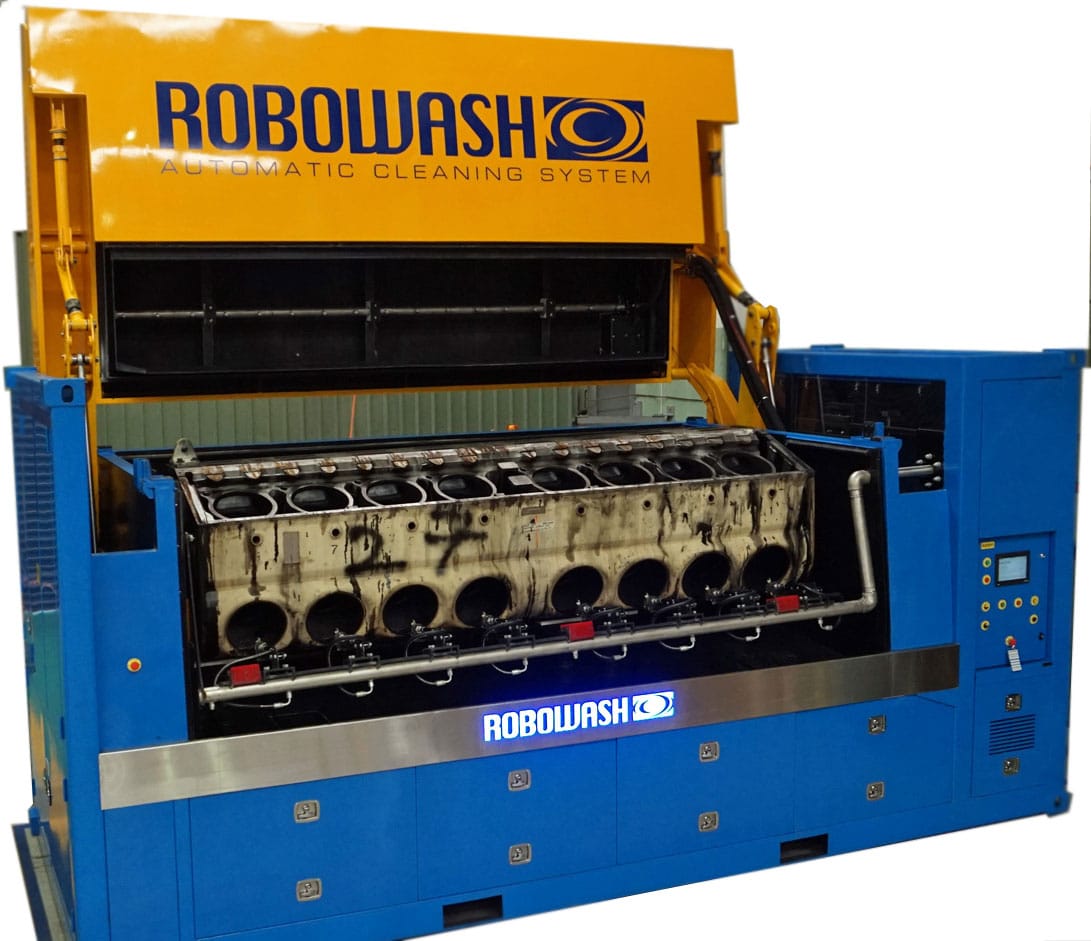

The R8 Robowash machine is purpose built for the global rail industry and in particular for cleaning EMD and GE 12, 16- and 20-cylinder engine blocks to manufacturer standards in a horizontal position. The R8 machine has multiple moving and oscillating spray bars with high impact nozzles and is the only machine available globally that cleans the internal cavities of locomotive engines.
Utilizing dual tanks for separation and removal of heavy carbon, combined with multiple oscillating spray bars.
Full Specfications
Resources and Downloads
Australian Made
Designed and built in-house to meet Australian standards
Proven Reliability
Robust machines that last decades with proper servicing
Cost-Effective
Less floorspace, less power, faster cycles = higher capacity
End-to-End Support
Installation, training, service and maintenance support
TRUSTED BY THE LEADING BRANDS
 |
RoboSink (single phase) | R1 (single phase) | R1 (3 phase) | R3-1400 | R3 | R4 | R5 | R6 | R7 | R8 | R9 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Load Capacity: | 250 kg | 450 kg | 450 kg | 1000 kg | 450 kg | 1.5 tonne | 3.0 tonne | 4.0 tonne | 6.0 tonne | 8.0 tonne | 6.0 tonne |
| Basket Dimensions: | 800mm x 550mm | 895mm Diameter | 895mm Diameter | 1400mm Diameter | 1100mm Diameter | 1500mm Diameter | 1800mm Diameter | 2000mm Diameter | 2400mm Diameter | 4000mm Horizontal Loading | 3250mm Diameter |
| Tank Capacity: | 60L | 160L | 160L | 280L | 200L | 325L | 475L | 2000L | 2000L | 1500L | 4000L |
| Max Electrical Load: | 10.3A | 11.9A | 20.0A | 20.0A – 3 Phase | 20.0A | 30A | 30A | 32A | 105–160A – Gas | 105–160A | 105–160A – Gas |
| Machine Weight: | 200 kg | 350 kg | 350 kg | 600 kg | 480 kg | 960 kg | 1250 kg | 5000 kg | 9000 kg | 9000 kg | 15000 kg |
| Internal Height | 250mm | 550mm | 550mm | 600mm | 600mm | 945mm | 1100mm | 2000mm | 1500mm | 1500mm | 1500mm |
