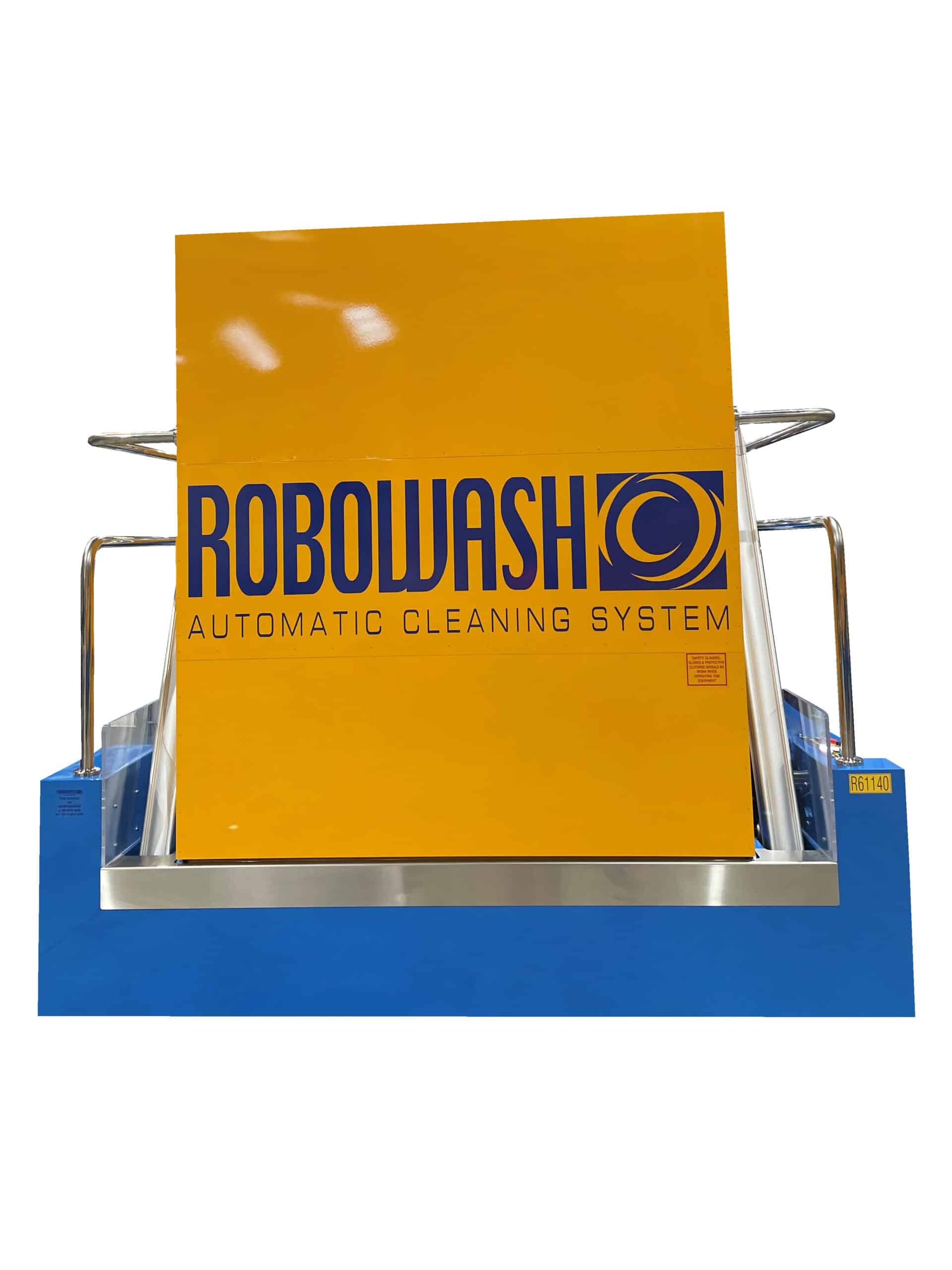

R6 Robowash Parts Washer Machine

Basket size: 2400mm
Internal height: 2000mm
Load capacity: 6 ton
Tank capacity: 2000L
Machine weight : 960 kg

Enquire Now

Machine Description

The R6 Robowash machine is perfectly designed for heavy industrial cleaning applications and is capable of cleaning large, heavy components with precise cleaning and contamination control. Suited for large off-road diesel engine rebuild and remanufacture as well as wheel hubs, final drives and precision gears.

Capable of cleaning 3500 diesel engine blocks

Options include additional spray bar for internal oil gallery cleaning, gas for heating and the ability to run caustic.

Machine Specifications

Model R6
Load Capacity 6.0 tonne
Basket Dimensions 2400 mm Diameter
Internal Height 2000 mm
Tank Capacity 2000 L
Pump Motor 415 v 3 Phase 15kW
Pump Water pressure 507-650 kPa (73-94 PSI)
Pump Mechanical Seal type Carbon / Ceramic / NBR
Elements – Heat up 42.0A
Elements – Run 50.0A
Gas Heating Option On demand 85 degree celcius heat
Machine Weight TBA
Overall height (lid closed) 3800 mm
Clearance height (lid open) 6000 mm
Depth (inc lid clearance) 3300 mm
Optional Extras Internal Oil Cavity Flush for engine blocks
Advanced Filtratio
Custom internal designs to maximise productivity
