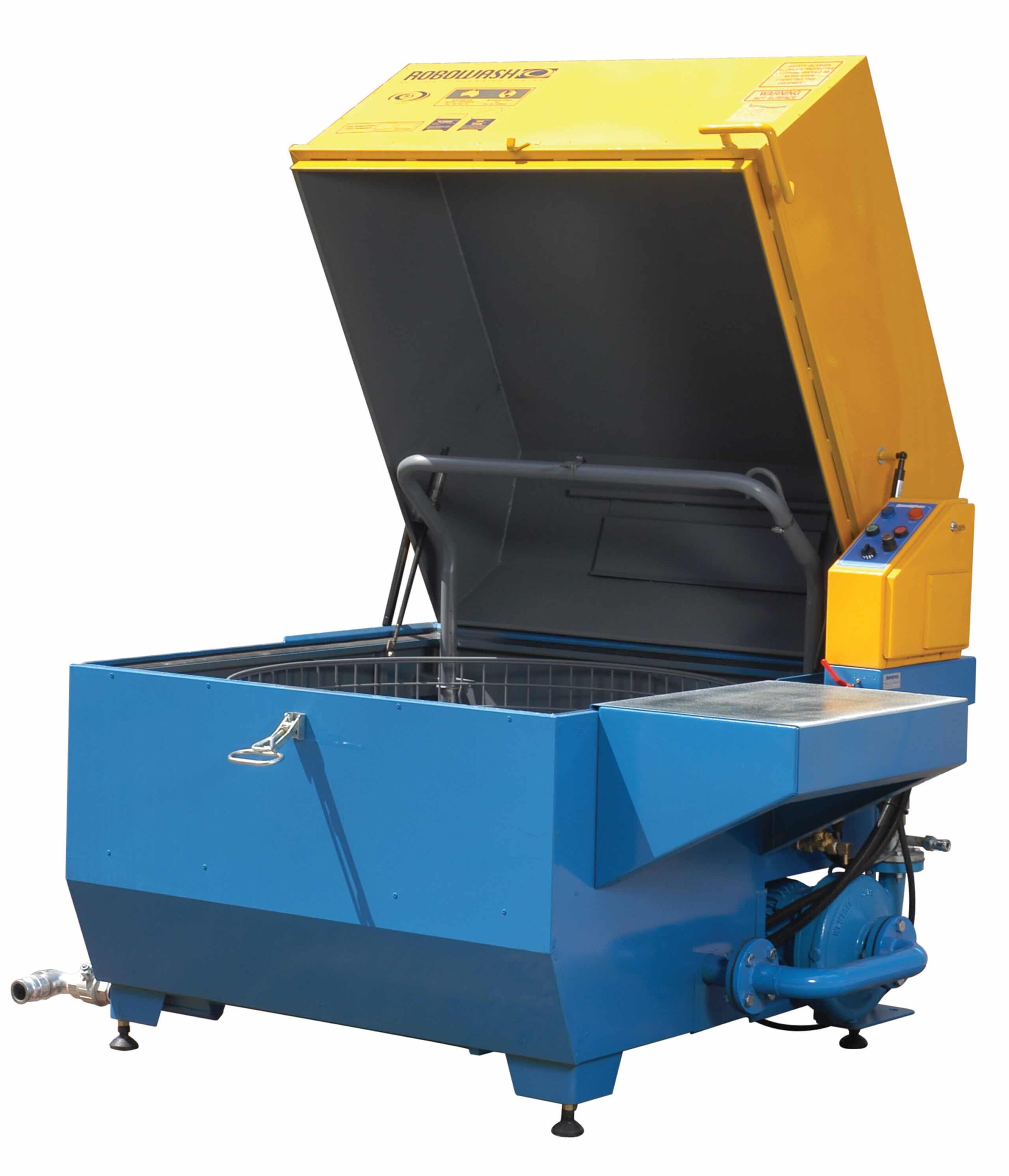

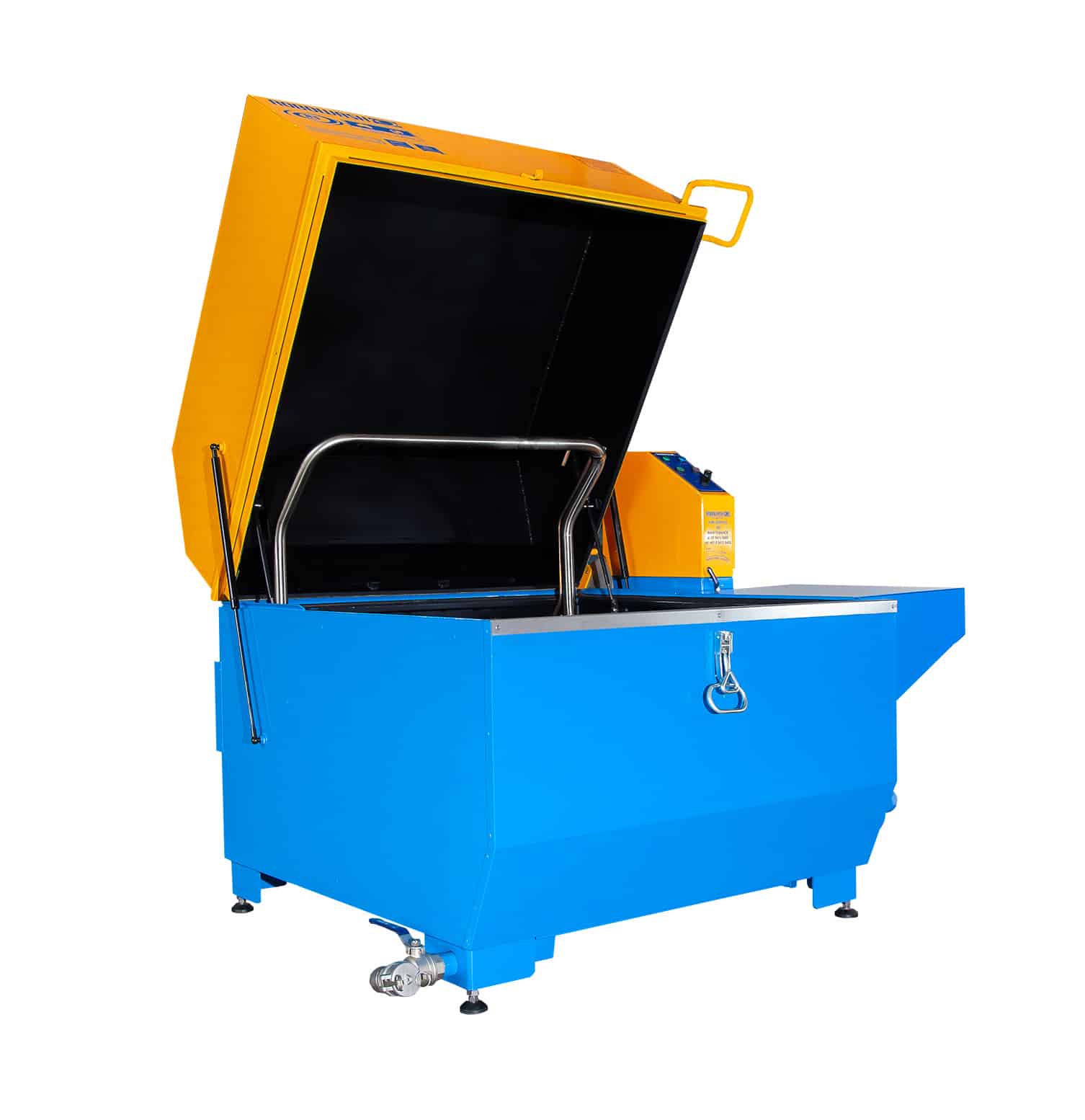

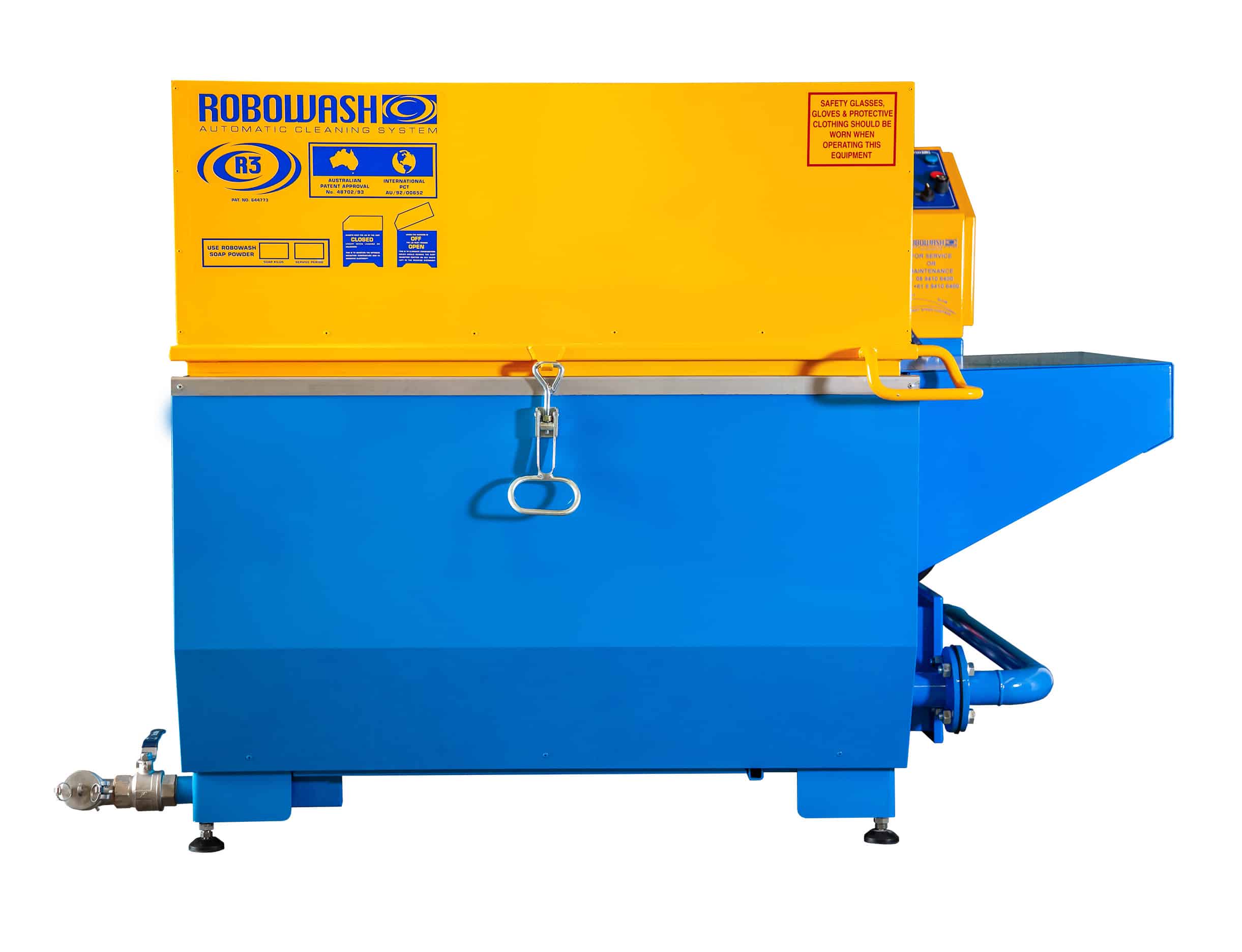

R3 Robowash Parts Washer Machine
R3 Robowash Parts Washer Machine
| Load Capacility: | 450 kg |
|---|---|
| Basket Dimensions: | 1100mm |
| Internal Height: | 600 mm |
| Tank Capacity: | 200L |
| Max Electrical Load: | 20A |
| Machine Weight: | 480 kg |
Machine Description
The R3 Robowash machine delivers superior aqueous parts cleaning performance with the labour saving convenience of automation.
Suited to general all round cleaning applications with a basket size of 1400mm, an internal height of 600mm and a standard weight range of 750kg. The R3 Robowash machine comes standard with full insulation, open lid design, side tables for loading and unloading, automatic water top up circuitry, heater element protection circuitry and electronic thermostat water temperature control.
The R3 Robowash machine comes with fully adjustable cleaning settings including wash cycle times, basket speeds and temperature.
Options for the machine include our High Pressure “Robogun” attachment, basket hub upgrade to 750kg, patented braking system and integrated waste water purge pump system.
R3 machines are available in mild steel and 316SS.
Suitable for general cleaning applications with light to heavy carbon deposits Pistons, rods, nuts and bolts, V6 to V8 Engines and components
Full Specfications
| Model | R3 |
| Load Capacity | 450 kg |
| Basket Dimensions | 1100 mm Diameter |
| Internal Height | 600 mm |
| Tank Capacity | 200 L |
| Pump Motor | 415 v 3 Phase 4kW 9.0A |
| Pump Water pressure | 380-485 kPa (55-70 PSI) |
| Pump Mechanical Seal type | Carbon / Ceramic / NBR |
| Elements – Heat up | 12.0A |
| Elements – Run | 12.0A |
| Max Electrical Load | 20.0A |
| Machine Weight | 480 kg |
| Overall height (lid closed) | 1310 mm |
| Clearance height (lid open) | 2200 mm |
| Depth (inc lid clearance) | 1600 mm |
| Width – no side tables | 1700 mm |
| Width – left side table | 1950 mm |
| Width – right side table | 1900 mm |
| Width – both side tables | 2150 mm |
Resources and Downloads
Australian Made
Designed and built in-house to meet Australian standards
Proven Reliability
Robust machines that last decades with proper servicing
Cost-Effective
Less floorspace, less power, faster cycles = higher capacity
End-to-End Support
Installation, training, service and maintenance support
TRUSTED BY THE LEADING BRANDS
 |
RoboSink (single phase) | R1 (single phase) | R1 (3 phase) | R3-1400 | R3 | R4 | R5 | R6 | R7 | R8 | R9 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Load Capacity: | 250 kg | 450 kg | 450 kg | 1000 kg | 450 kg | 1.5 tonne | 3.0 tonne | 4.0 tonne | 6.0 tonne | 8.0 tonne | 6.0 tonne |
| Basket Dimensions: | 800mm x 550mm | 895mm Diameter | 895mm Diameter | 1400mm Diameter | 1100mm Diameter | 1500mm Diameter | 1800mm Diameter | 2000mm Diameter | 2400mm Diameter | 4000mm Horizontal Loading | 3250mm Diameter |
| Tank Capacity: | 60L | 160L | 160L | 280L | 200L | 325L | 475L | 2000L | 2000L | 1500L | 4000L |
| Max Electrical Load: | 10.3A | 11.9A | 20.0A | 20.0A – 3 Phase | 20.0A | 30A | 30A | 32A | 105–160A – Gas | 105–160A | 105–160A – Gas |
| Machine Weight: | 200 kg | 350 kg | 350 kg | 600 kg | 480 kg | 960 kg | 1250 kg | 5000 kg | 9000 kg | 9000 kg | 15000 kg |
| Internal Height | 250mm | 550mm | 550mm | 600mm | 600mm | 945mm | 1100mm | 2000mm | 1500mm | 1500mm | 1500mm |
