| Basket size: | 2400mm |
|---|---|
| Internal height: | 2000 mm |
| Load capacity: | 5 ton |
| Tank capacity: | 2000L |
| Machine weight : | TBA |

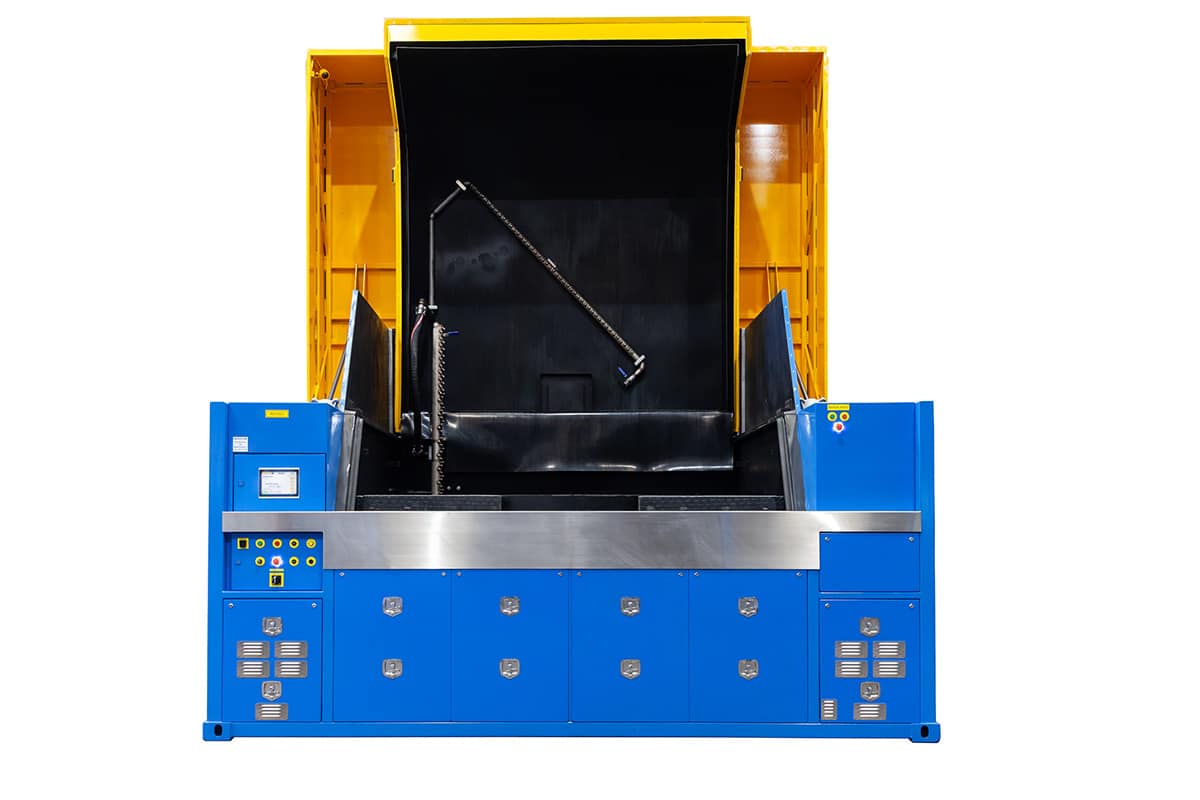

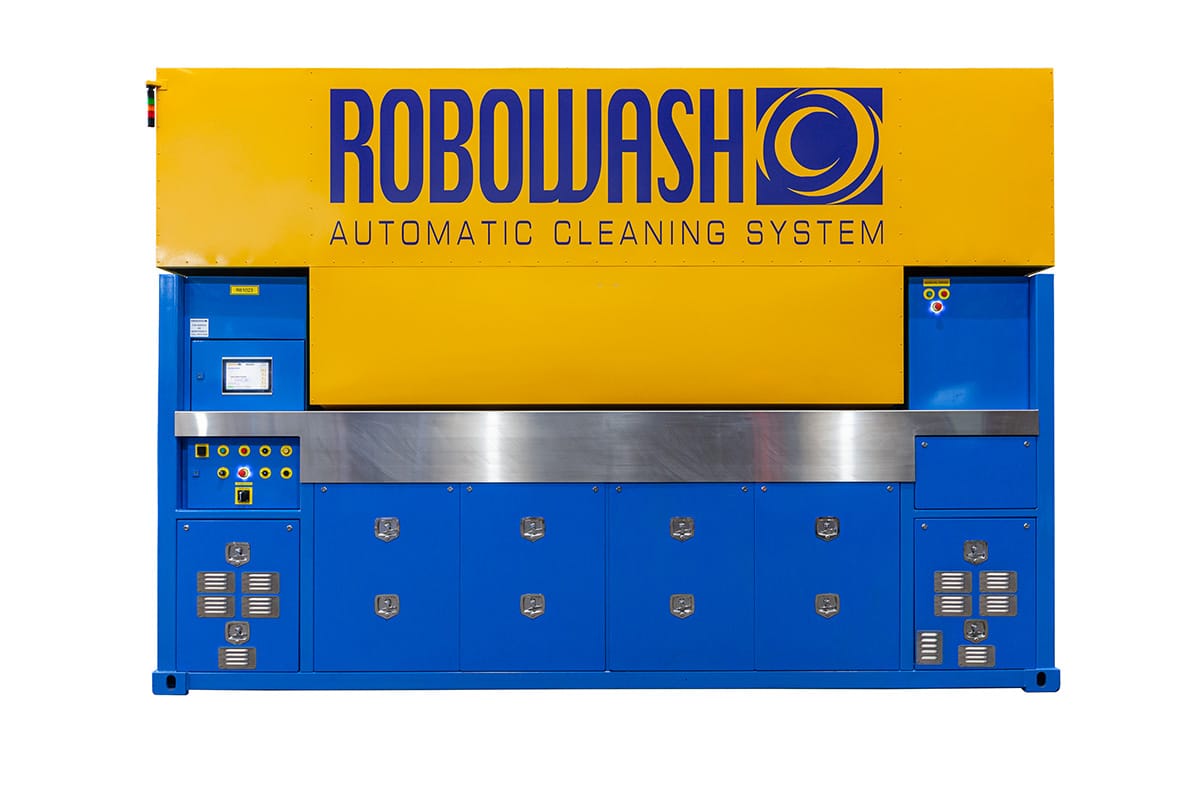

The R7 Robowash machine is a capable of cleaning the largest industrial engine and components available, including C175 and 3500 Caterpillar engines internally as well as externally. Capable of using caustic soda for cleaning and paint removal and combined with gas heating which eliminates heat up times between wash cycles and high impact spray nozzles, there is simply no other method of cleaning heavy industrial components with such capacity.
| Model | R7 |
| Load Capacity | 5.0 tonne |
| Basket Dimensions | 2400 mm Diameter |
| Internal Height | 2000 mm |
| Tank Capacity | 2000L |
| Pump Motor | 415 v 3 Phase 5.5kW |
| Pump Water pressure | 507-650 kPa (73-94 PSI) |
| Pump Mechanical Seal type | Carbon / Ceramic / NBR |
| Elements – Heat up | 84.0A |
| Elements – Run | 56.0A |
| Gas Heating Option | On demand 85 degree celcius heat |
| Machine Weight | TBA |
| Overall height (lid closed) | 3800 mm |
| Clearance height (lid open) | 6000 mm |
| Depth (inc lid clearance) | 3300 mm |
| Width | 4500 |
| Optional Extras | Internal Oil Cavity Flush for engine blocks. |
| Advanced Filtration | |
| Custom internal designs to maximise productivity | |
| Upgraded 55kW pump delivering 1100 litres per minute at 14 bar pressure |
