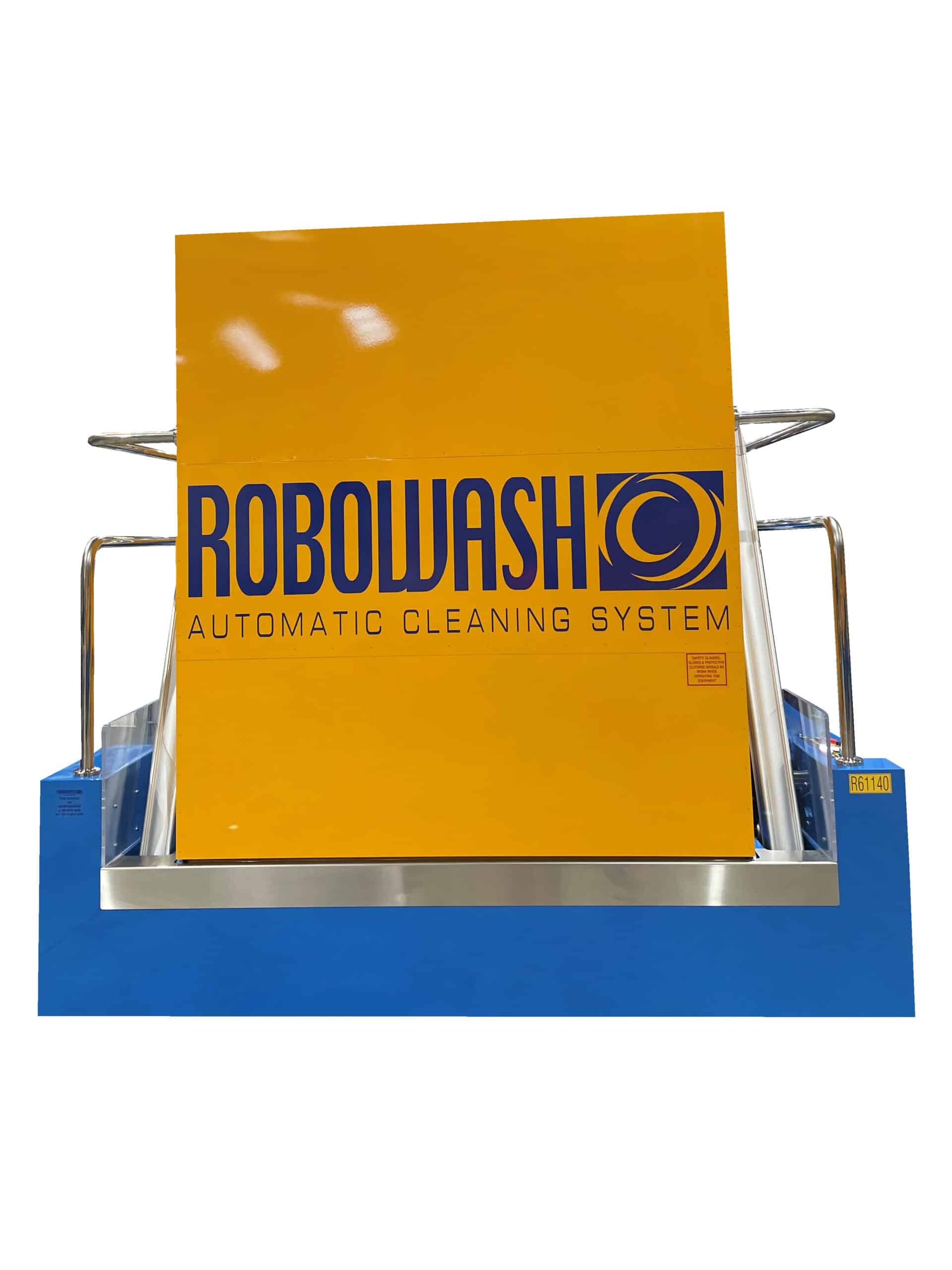

R6 Robowash Parts Washer Machine
R6 Robowash Parts Washer Machine
| Load capacity: | 4 Tonne |
|---|---|
| Basket size: | 2000 mm Diameter |
| Internal height: | 2000 mm |
| Tank capacity: | 700 L |
Machine Description
The R6 Robowash machine is perfectly designed for heavy industrial cleaning applications and is capable of cleaning large, heavy components with precise cleaning and contamination control. Suited for large off-road diesel engine rebuild and remanufacture as well as wheel hubs, final drives and precision gears.
Full Specfications
| Model | R6 |
| Load Capacity | 4.0 tonne |
| Basket Dimensions | 2000 mm Diameter |
| Internal Height | 2000 mm |
| Tank Capacity | 700 L |
| Pump Motor | 2 x 415V 3 phase 5.5KW @ 11.8A |
| Pump Water pressure | 8 bar pressure (116 PSI) |
| Pump Mechanical Seal type | Carbon / Ceramic / NBR |
| Elements – Heat up | 30A |
| Elements – Run | 6.3A |
| Max Electrical Load | 32A |
| Machine Weight | 2000 kg |
| Overall height (lid closed) | 3150 mm |
| Clearance height (lid open) | 4800 mm |
| Depth (inc lid clearance) | 2400 mm |
| Width | 3300 mm |
Resources and Downloads
Australian Made
Designed and built in-house to meet Australian standards
Proven Reliability
Robust machines that last decades with proper servicing
Cost-Effective
Less floorspace, less power, faster cycles = higher capacity
End-to-End Support
Installation, training, service and maintenance support
TRUSTED BY THE LEADING BRANDS
 |
RoboSink (single phase) | R1 (single phase) | R1 (3 phase) | R3-1400 | R3 | R4 | R5 | R6 | R7 | R8 | R9 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Load Capacity: | 250 kg | 450 kg | 450 kg | 1000 kg | 450 kg | 1.5 tonne | 3.0 tonne | 4.0 tonne | 6.0 tonne | 8.0 tonne | 6.0 tonne |
| Basket Dimensions: | 800mm x 550mm | 895mm Diameter | 895mm Diameter | 1400mm Diameter | 1100mm Diameter | 1500mm Diameter | 1800mm Diameter | 2000mm Diameter | 2400mm Diameter | 4000mm Horizontal Loading | 3250mm Diameter |
| Tank Capacity: | 60L | 160L | 160L | 280L | 200L | 325L | 475L | 2000L | 2000L | 1500L | 4000L |
| Max Electrical Load: | 10.3A | 11.9A | 20.0A | 20.0A – 3 Phase | 20.0A | 30A | 30A | 32A | 105–160A – Gas | 105–160A | 105–160A – Gas |
| Machine Weight: | 200 kg | 350 kg | 350 kg | 600 kg | 480 kg | 960 kg | 1250 kg | 5000 kg | 9000 kg | 9000 kg | 15000 kg |
| Internal Height | 250mm | 550mm | 550mm | 600mm | 600mm | 945mm | 1100mm | 2000mm | 1500mm | 1500mm | 1500mm |
