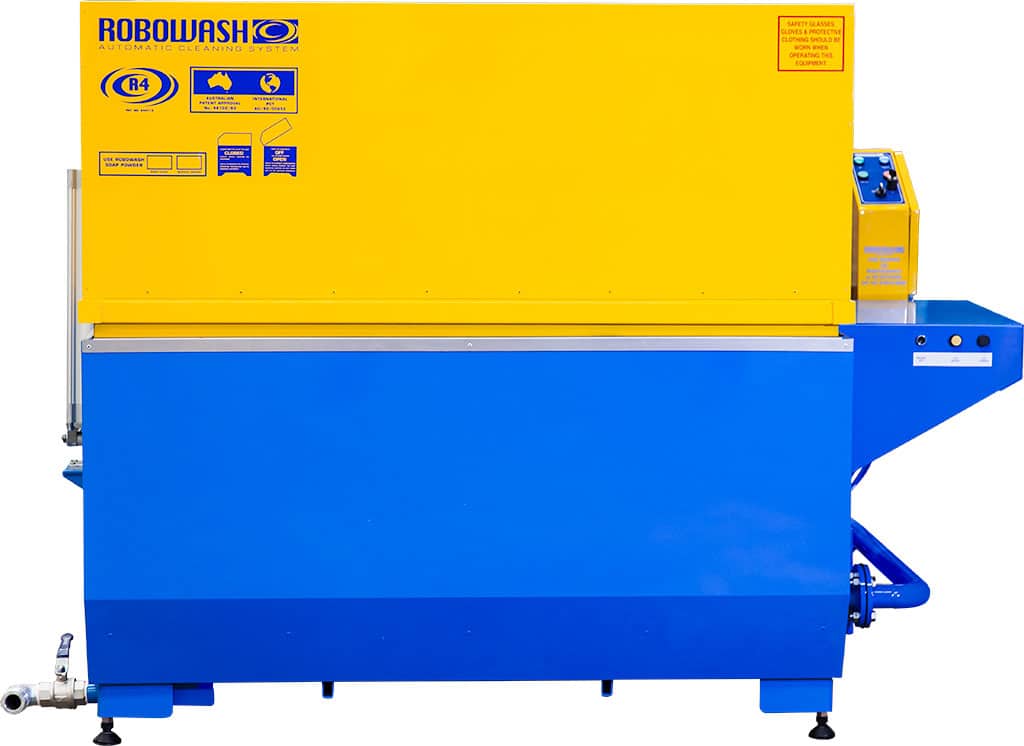

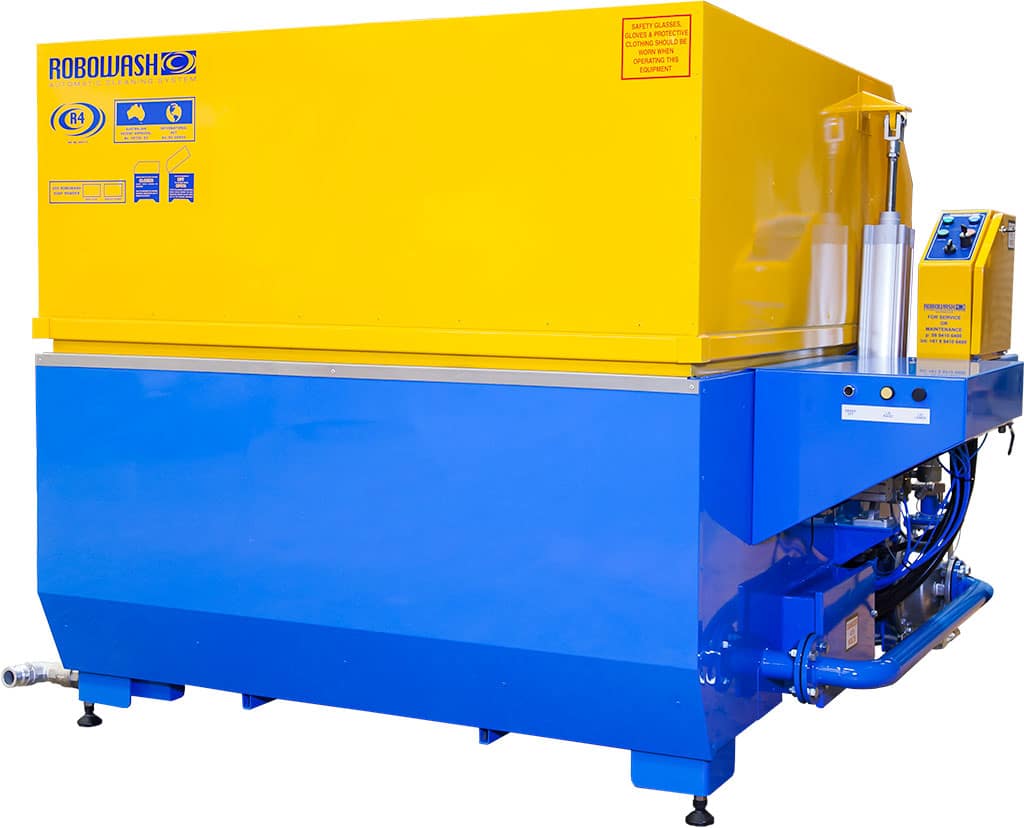

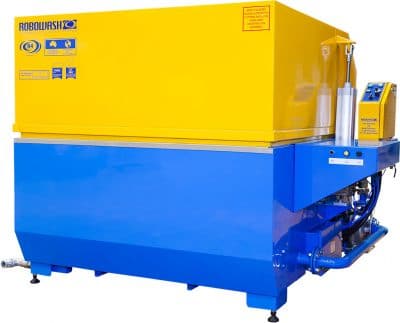

R4 Robowash Parts Washer Machine
R4 Robowash Parts Washer Machine
| Load capacity: | 1500 kg |
|---|---|
| Basket size: | 1500 mm |
| Internal height: | 945 mm |
| Tank capacity: | 325 L |
| Machine weight : | 960 kg |
Machine Description
The R4 Robowash machine delivers superior aqueous parts cleaning performance with advanced safety features and the labour saving convenience of automation.

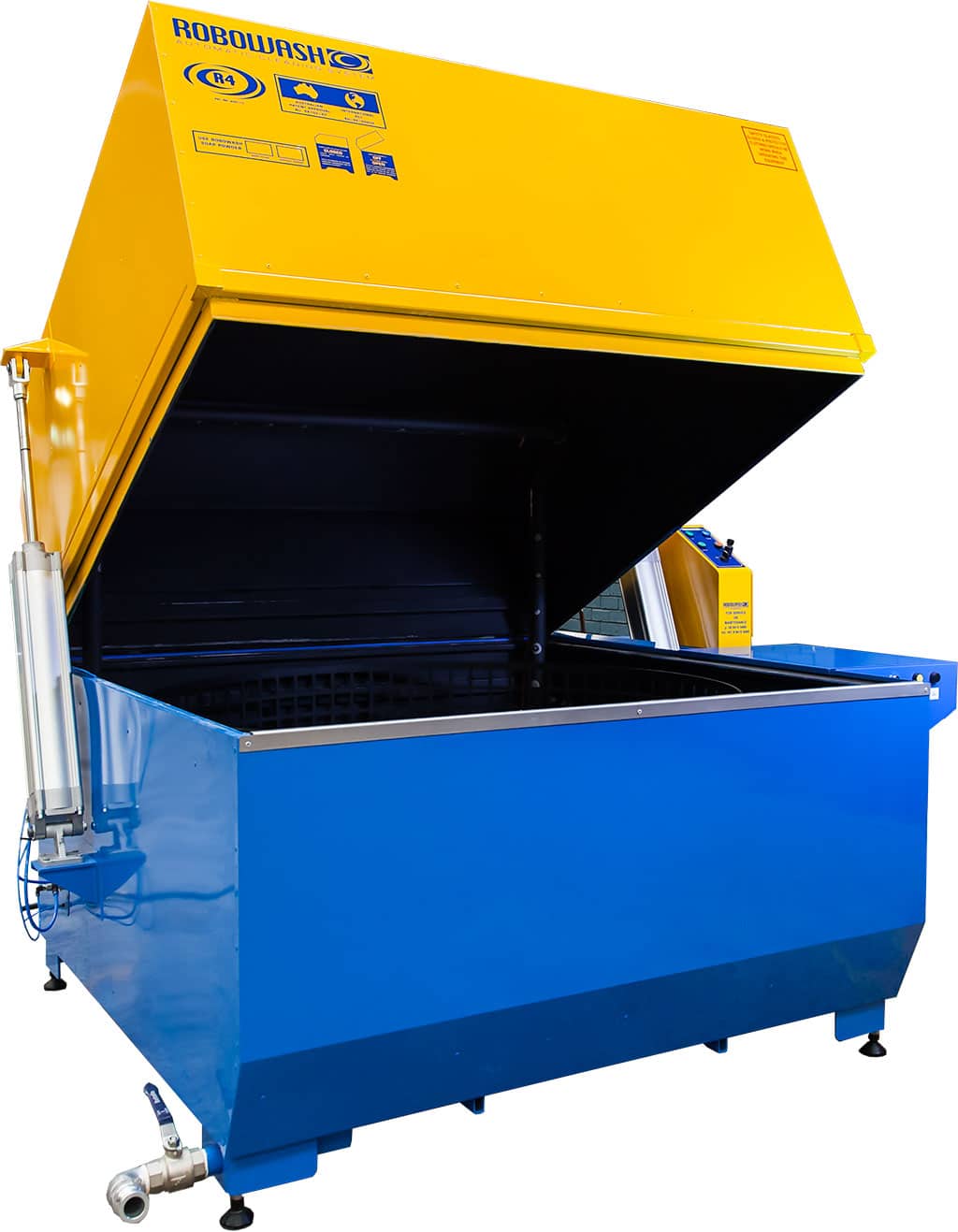

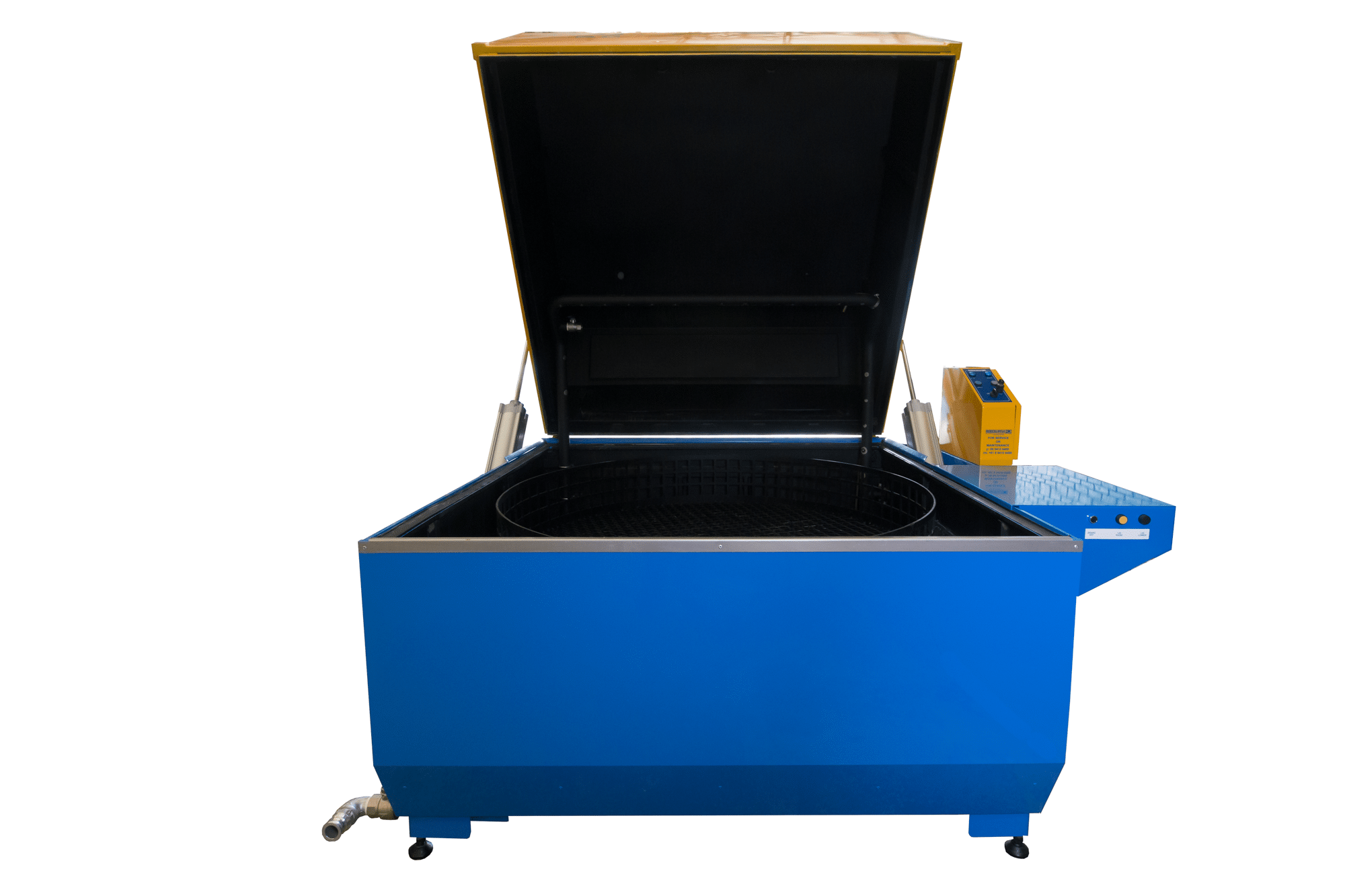

The R4 Robowash is suited to large cleaning applications with a basket size of 1500mm, an internal height of 945mm and a weight range of 1500kg. The R4 Robowash machine comes standard with full insulation, open lid design for ease of loading and unloading, pneumatically operated water saving lid with safety shut down circuitry, basket loading brake, automatic water top up circuitry, heater element protection circuitry and electronic thermostat water temperature control.
The R4 Robowash machine comes with fully adjustable cleaning settings including wash cycle times, basket speeds and temperature.
Options for the R4 machine include our “Robogun” and integrated waste water purge pump system.
R4 Machines are available in mild steel and 316SS.
Suitable for large cleaning applications with heavy carbon deposits Engine blocks, final drives, spindles and heavy equipment
Full Specfications
| Model | R4 |
| Load Capacity | 1500kg |
| Basket Dimensions | 1500 mm Diameter |
| Internal Height | 945 mm |
| Tank Capacity | 325 L |
| Pump Motor | 415 v 3 Phase 4kW 9.0A |
| Pump Water pressure | 380 – 485kPa (55 – 70psi) |
| Pump Mechanical Seal type | Carbon / Ceramic / NBR |
| Elements – Heat up | 30.0A |
| Elements – Run | 30.0A |
| Max Electrical Load | 32.0A |
| Machine Weight | 960 kg |
| Overall height (lid closed) | 1650 mm |
| Clearance height (lid open) | 2800 mm |
| Depth (inc lid clearance) | 2320 mm |
| Width – no side tables | 2500 mm |
| Width – left side table | 2500 mm |
| Width – right side table | 2300 mm* |
| Width – both side tables | 2600 mm |
| Comments | * Right side table fixed |
Resources and Downloads
Australian Made
Designed and built in-house to meet Australian standards
Proven Reliability
Robust machines that last decades with proper servicing
Cost-Effective
Less floorspace, less power, faster cycles = higher capacity
End-to-End Support
Installation, training, service and maintenance support
TRUSTED BY THE LEADING BRANDS
 |
RoboSink (single phase) | R1 (single phase) | R1 (3 phase) | R3-1400 | R3 | R4 | R5 | R6 | R7 | R8 | R9 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Load Capacity: | 250 kg | 450 kg | 450 kg | 1000 kg | 450 kg | 1.5 tonne | 3.0 tonne | 4.0 tonne | 6.0 tonne | 8.0 tonne | 6.0 tonne |
| Basket Dimensions: | 800mm x 550mm | 895mm Diameter | 895mm Diameter | 1400mm Diameter | 1100mm Diameter | 1500mm Diameter | 1800mm Diameter | 2000mm Diameter | 2400mm Diameter | 4000mm Horizontal Loading | 3250mm Diameter |
| Tank Capacity: | 60L | 160L | 160L | 280L | 200L | 325L | 475L | 2000L | 2000L | 1500L | 4000L |
| Max Electrical Load: | 10.3A | 11.9A | 20.0A | 20.0A – 3 Phase | 20.0A | 30A | 30A | 32A | 105–160A – Gas | 105–160A | 105–160A – Gas |
| Machine Weight: | 200 kg | 350 kg | 350 kg | 600 kg | 480 kg | 960 kg | 1250 kg | 5000 kg | 9000 kg | 9000 kg | 15000 kg |
| Internal Height | 250mm | 550mm | 550mm | 600mm | 600mm | 945mm | 1100mm | 2000mm | 1500mm | 1500mm | 1500mm |
