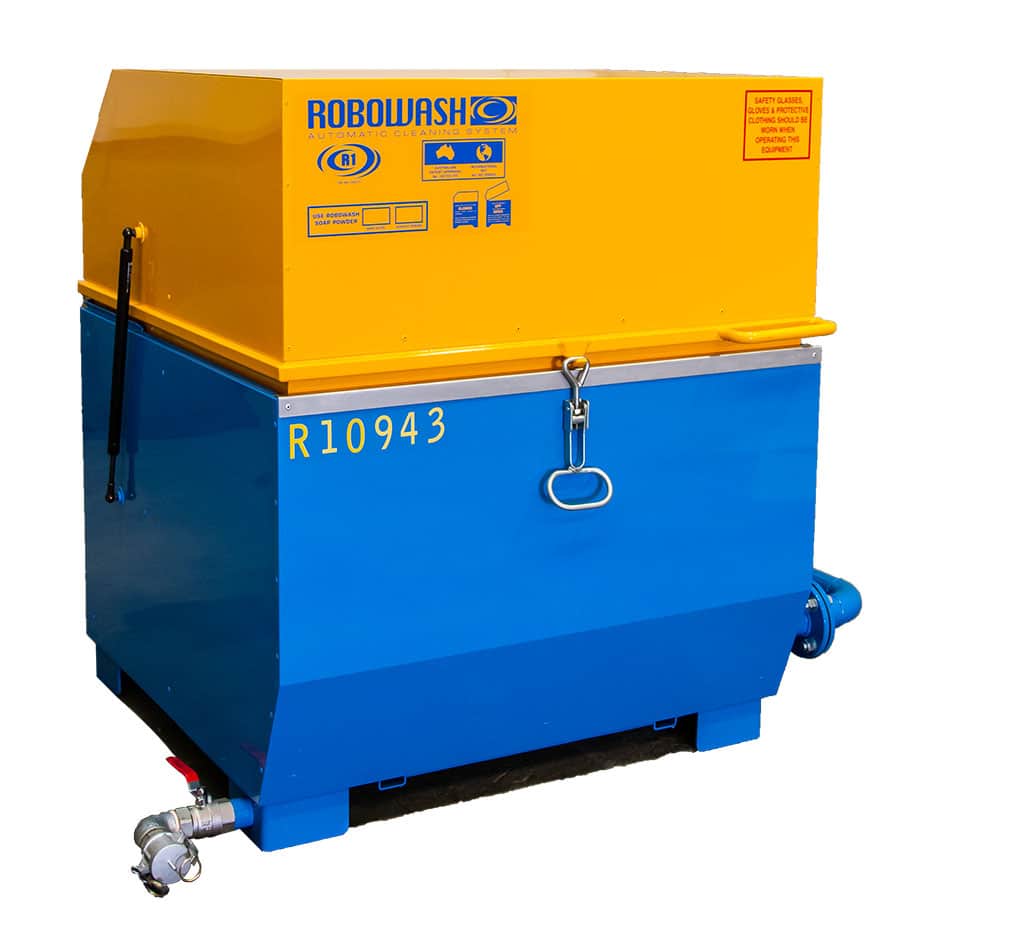

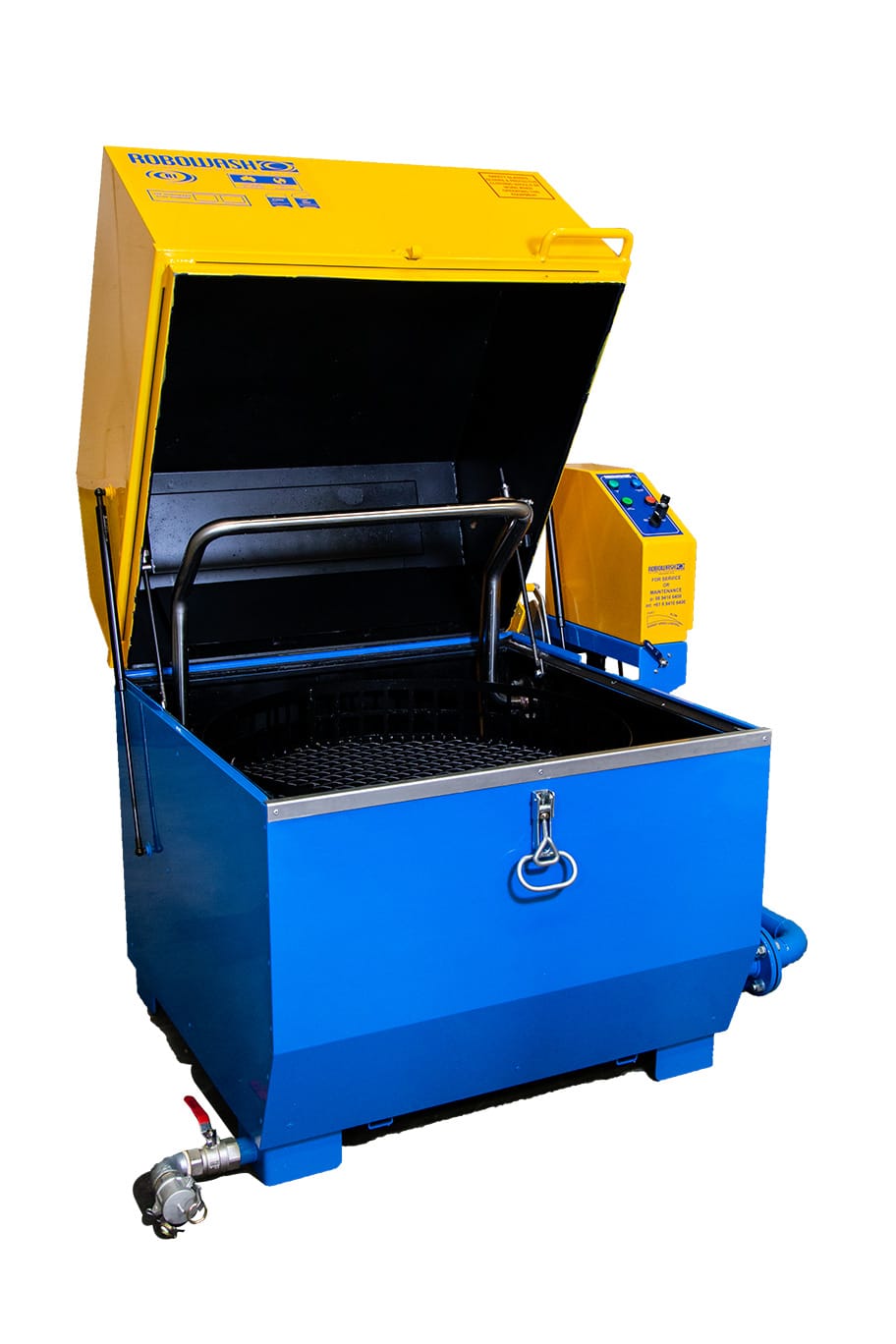

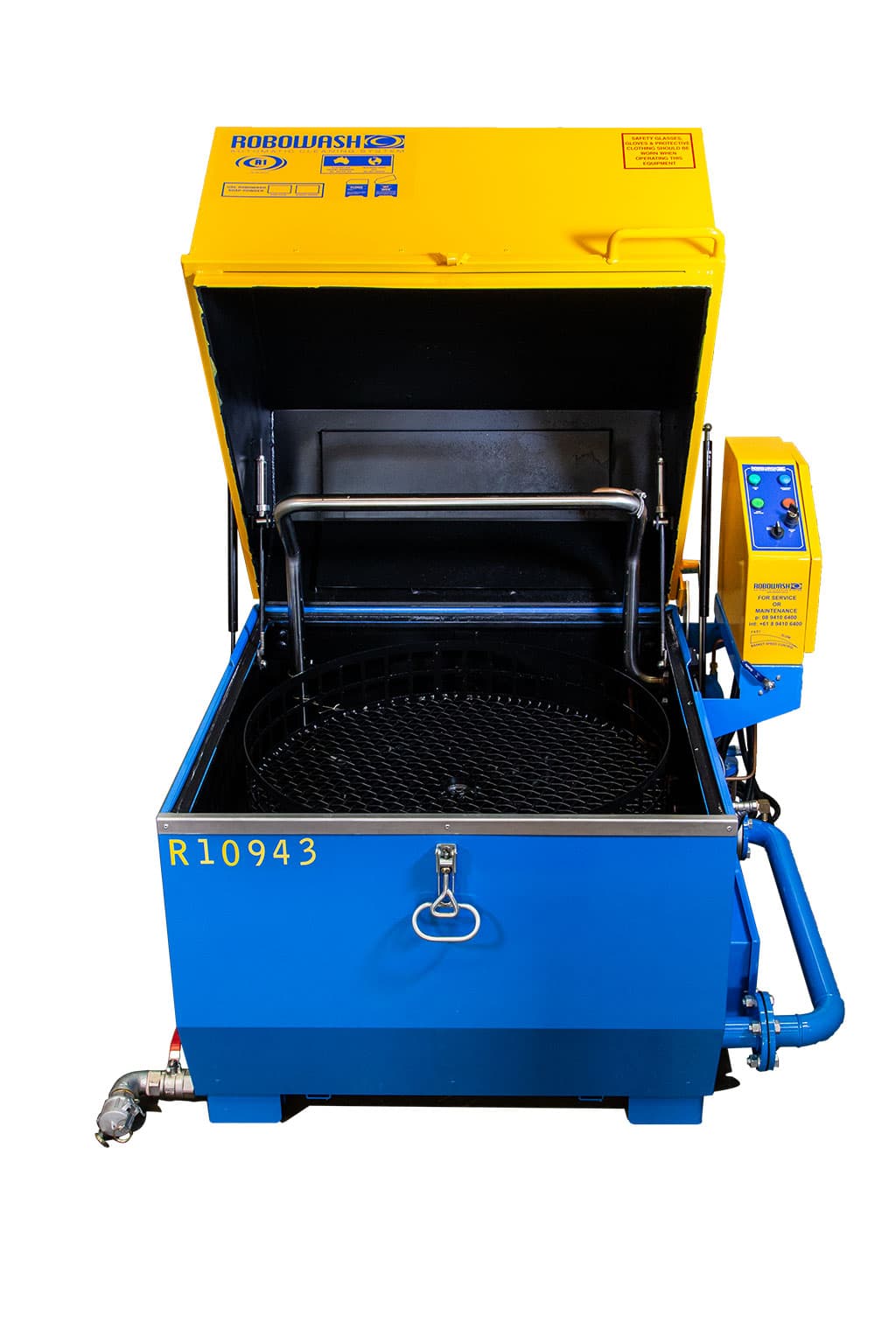

R1 Robowash Parts Washer Machine
R1 Robowash Parts Washer Machine
| Load Capacility: | 250 kg |
|---|---|
| Basket Dimensions: | 895mm Diameter |
| Internal height | 550mm |
| Tank Capacity: | 160L |
| Machine Weight: | 350 kg |
Machine Description
The R1 Robowash parts washer delivers superior aqueous parts washing performance with the labour saving convenience of automation.
Suited to smaller parts washing applications with a basket size of 895mm, an internal height of 550mm and a weight range of 450kg. The R1 Robowash parts washer machine comes standard with full insulation, open lid design, side tables for loading and unloading, automatic water top up circuitry, heater element protection circuitry and electronic thermostat water temperature control.
The R1 Robowash parts washer comes with fully adjustable cleaning settings including hot wash cycle times, basket speeds and temperature control.
Options for the R1 parts washer include single or 3 Phase power configuration, High Pressure “Robogun” attachment, patented braking system and integrated waste water purge pump system, digital 7-day timer, emergency stop and lid safety stop.
R1 parts washers are available in mild steel and 316SS.
Suitable for smaller parts washing applications with light to heavy carbon deposits such as pistons, rods, end caps, nuts and bolts
Full Specfications
| Model: | R1 (single phase) | R1 (3 phase) |
|---|---|---|
| Load Capacity: | 250 kg | 250 kg |
| Basket Dimensions: | 895mm Diameter | 895mm Diameter |
| Internal Height: | 550 mm | 550 mm |
| Tank Capacity: | 160 L | 160 L |
| Pump Motor: | 10.3A | 8.7A |
| Pump Water pressure: | 380 – 485kPa (55 – 70psi) | 380 – 485kPa (55 – 70psi) |
| Pump Mechanical Seal type: | Carbon / Ceramic / NBR | Carbon / Ceramic / NBR |
| Elements: | 12.5A | 13.5A |
| Max Electrical Load: | 13.5A | 16.5A |
| Machine Weight: | 350 kg | 350 kg |
| Overall height (lid closed): | 1300 mm | 1300 mm |
| Clearance height (lid open): | 2000 mm | 2000 mm |
| Depth (inc lid clearance): | 1500 mm | 1500 mm |
| Width – no side tables: | 1525mm | 1525mm |
| Width – left side table: | 1780mm | 1780mm |
| Width – right side table: | 1700mm | 1700mm |
| Width – both side tables: | 1940mm | 1940mm |
Resources and Downloads
Australian Made
Designed and built in-house to meet Australian standards
Proven Reliability
Robust machines that last decades with proper servicing
Cost-Effective
Less floorspace, less power, faster cycles = higher capacity
End-to-End Support
Installation, training, service and maintenance support
TRUSTED BY THE LEADING BRANDS
 |
RoboSink (single phase) | R1 (single phase) | R1 (3 phase) | R3-1400 | R3 | R4 | R5 | R6 | R7 | R8 | R9 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Load Capacity: | 250 kg | 450 kg | 450 kg | 1000 kg | 450 kg | 1.5 tonne | 3.0 tonne | 4.0 tonne | 6.0 tonne | 8.0 tonne | 6.0 tonne |
| Basket Dimensions: | 800mm x 550mm | 895mm Diameter | 895mm Diameter | 1400mm Diameter | 1100mm Diameter | 1500mm Diameter | 1800mm Diameter | 2000mm Diameter | 2400mm Diameter | 4000mm Horizontal Loading | 3250mm Diameter |
| Tank Capacity: | 60L | 160L | 160L | 280L | 200L | 325L | 475L | 2000L | 2000L | 1500L | 4000L |
| Max Electrical Load: | 10.3A | 11.9A | 20.0A | 20.0A – 3 Phase | 20.0A | 30A | 30A | 32A | 105–160A – Gas | 105–160A | 105–160A – Gas |
| Machine Weight: | 200 kg | 350 kg | 350 kg | 600 kg | 480 kg | 960 kg | 1250 kg | 5000 kg | 9000 kg | 9000 kg | 15000 kg |
| Internal Height | 250mm | 550mm | 550mm | 600mm | 600mm | 945mm | 1100mm | 2000mm | 1500mm | 1500mm | 1500mm |
